Antireflection Coating 1070 nm |
|
 |
Bk7, JGS1 and CaF2 substrates Reflectance (R) Ra< 0.1% @1070nm Thermal Stability: –62 °C to +70 °C (no degradation) (MIL-C-48497A) Humidity Resistance: 24 h @ 95% RH, 50°C (MIL-C-48497A) Abrasion Resistance: Moderate abrasion (MIL-C-48497A) Adhesion: Tape test, no peeling (MIL-C-48497A) Chemical Resistance: Trichloroethylene, Acetone, Ethyl alcohol, no delamination (MIL-C-48497A) |
Broadband MWIR AR Coating (3.6-4.9um) |
|
 |
Ge, Si, ZnS, ZnSe and IRG substrates Reflectance (R) Ra< 1% @3.6-4.9 um Thermal Stability: –62 °C to +70 °C (no degradation) (MIL-C-48497A) Humidity Resistance: 24 h @ 95% RH, 50°C (MIL-C-48497A) Abrasion Resistance: Moderate abrasion (MIL-C-48497A) Adhesion: Tape test, no peeling (MIL-C-48497A) Chemical Resistance: Trichloroethylene, Acetone, Ethyl alcohol, no delamination (MIL-C-48497A) |
LWIR Partial Reflective Coating (10.6 um) |
|
 |
Reflectance (R) Ra=80% @10.6um tested on ZnSe substrate Thermal Stability: –62 °C to +70 °C (no degradation) (MIL-C-48497A) Humidity Resistance: 24 h @ 95% RH, 50°C (MIL-C-48497A) Abrasion Resistance: Moderate abrasion (MIL-C-48497A) Adhesion: Tape test, no peeling (MIL-C-48497A) Chemical Resistance: Trichloroethylene, Acetone, Ethyl alcohol, no delamination (MIL-C-48497A) |
LWIR AR Coating (10.6 um) |
|
 |
Reflectance (R) Ra< 2% @10.6um tested on ZnSe substrate Thermal Stability: –62 °C to +70 °C (no degradation) (MIL-C-48497A) Humidity Resistance: 24 h @ 95% RH, 50°C (MIL-C-48497A) Abrasion Resistance: Moderate abrasion (MIL-C-48497A) Adhesion: Tape test, no peeling (MIL-C-48497A) Chemical Resistance: Trichloroethylene, Acetone, Ethyl alcohol, no delamination (MIL-C-48497A) |
|
MWIR DLC Coating (3.6-4.9um) |
|
 |
Ge, Si, ZnS, ZnSe and IRG substrates Reflectance (R) Ra< 3% @3.6-4.9um Thermal Stability: –62 °C to +70 °C (no degradation) (MIL-C-48497A) Humidity Resistance: 24 h @ 95% RH, 50°C (MIL-C-48497A) Abrasion Resistance: Moderate abrasion (MIL-C-48497A) Adhesion: Tape test, no peeling (MIL-C-48497A) Chemical Resistance: Trichloroethylene, Acetone, Ethyl alcohol, no delamination (MIL-C-48497A) |

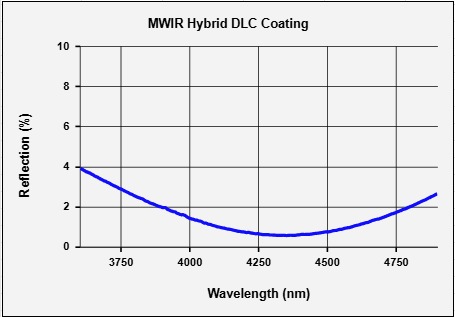

MWIR DLC Hybrid Coating (3.6-4.9um) |
|
 |
Ge and Si substrates Reflectance (R) Ra< 4% @3.6-4.9um Thermal Stability: –62 °C to +70 °C (no degradation) (MIL-C-48497A) Humidity Resistance: 24 h @ 95% RH, 50°C (MIL-C-48497A) Abrasion Resistance: Moderate abrasion (MIL-C-48497A) Adhesion: Tape test, no peeling (MIL-C-48497A) Chemical Resistance: Trichloroethylene, Acetone, Ethyl alcohol, no delamination (MIL-C-48497A) |
LWIR DLC Coating (8-12um) |
|
 |
Ge substrates Reflectance (R) Ra< 4% @8-12um Thermal Stability: –62 °C to +70 °C (no degradation) (MIL-C-48497A) Humidity Resistance: 24 h @ 95% RH, 50°C (MIL-C-48497A) Abrasion Resistance: Moderate abrasion (MIL-C-48497A) Adhesion: Tape test, no peeling (MIL-C-48497A) Chemical Resistance: Trichloroethylene, Acetone, Ethyl alcohol, no delamination (MIL-C-48497A) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
